raincell

A user-friendly Python library for transforming commercial microwave links into rain estimation insights. Built with nbdev and Jupyter notebooks, this tool offers robust scientific and visualization capabilities, tailored for researchers in the field.

Tip: If you are reading this in the GitHub’s readme or at pypi, we recommend consulting the much more nicely formatted documentation instead.

Install

You can install the package from pypi

$ pip install raincell

If you need the latest version of the package, which may be pre-release, you can install it from the GitHub repository. First, configure an SSH key on your GitHub account, then run the following command:

$ pip install git+ssh://git@github.com/rainsmore/raincell.git

Contributing

All help is welcome, so if you would like to contribute (bug reports, documentation, etc.), please check our contribution guide. This guide also explains our approach to notebook development.

Getting started

If this is the first time you are using the Raincell library, we highly recommend following the tutorial in this section. You can either work through the online documentation or download this file as a notebook and work through it locally. The tutorial will guide you step by step through the process of converting raw Commercial Microwave Link (CML) data into precipitation rate estimates.

Tip

If you are already familiar with the library, you can skip to the Next steps section. However, we recommend checking it from time to time, as new basic functionalities will appear here.

from raincell import open_cml_sample, open_gauge_sample

Lets start by opening commercial microwave link (CML) sample data over the city of Douala with 15 min and max sampling of the Network Management System (NMS).

cml = open_cml_sample()
cml

We will also open gauges sample data for the same region and time period.

gauge = open_gauge_sample()
gauge

The gauge sample is taken at regular 5-minute intervals, but some timesteps are missing. Let’s convert it to 15-minute intervals so that it matches the CML data timestamps, while reducing the number of missing intervals.

gauge = gauge.resample({"time": "15min"}).sum(min_count=1)
gauge

In order to retrieve the precipitation rate we need to classify the data as wet or dry.

from raincell import wetdry

wet = wetdry.schleiss_n_berne_2010_nms_adapted(cml)
wet

Remember that if you are using and IDE such as jupyter or vscode you can type wetdry. and then press tab to get the available methods. You can also check the Wet/Dry classification section in the left bar of the doc for further details.

Next we need to compute the attenuations. As we are using min and max sampling, and TSL doesn’t vary a lot we will use minimum and maximum attenuations.

att = (cml["tsl_min"] - cml["rsl_min"]).to_dataset(name="att_min")
att["att_max"] = cml["tsl_max"] - cml["rsl_max"]

Now that attenuation is ready, lets compute the baseline. During dry periods signal is stable so minimum and máximum attenuation should also be stable. For this reason we will take the average of both signals to compute the baseline.

from raincell import baseline

avg = (att["att_min"] + att["att_max"])/2
avg.name = ""
bl = baseline.get_bl_as_last_dry_step(avg, wet)
bl

By removing the baseline to the attenuations we can obtain the attenuation due to rain.

att_rain = att - bl
att_rain

Rain related attenuation has two components: Wet Antenna Attenuation (WAA) and Path Integrated Attenuation (PIA). We need to isolate the later to be able to estimate the percipitation rate.

from raincell import waa

pia = waa.rm_constant_waa(att_rain)
pia

Finally we can obtain the precipitation rate as follows.

from raincell import rrate

tprate = rrate.get_overeem_et_al_2013_min_max_nms_tprate(
    pia, rrate.alcoba_2019_africa_coefs(), name_min="att_min", name_max="att_max"
)
tprate

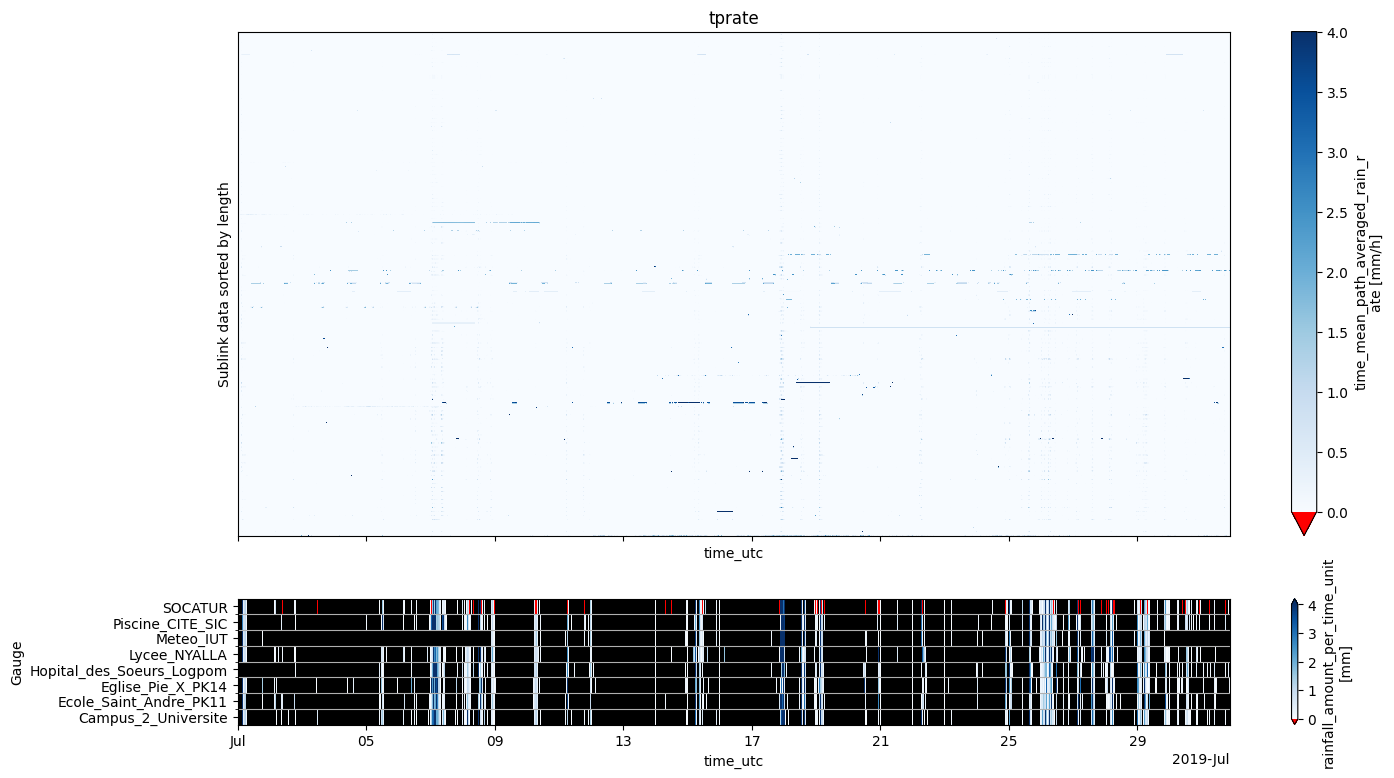

Let’s visually compare the estimated precipitation rates from the CML-based retrievals with the precipitation rates measured by the ground gauges.

from raincell import plot

plot.romulo_plot(tprate["tprate"], gauge["rainfall_amount"], cml_vmax=4, gauges_vmax=4);

Next steps

Now that you are familiar with the library, you can start using it by importing the relevant functions. Alternatively, you can download any of the available notebooks to use as a starting point for analysing your own data. You can also explore the available methods, visualisations, etc. by reading through the documentation.
